世俱杯官网Leelool黑烟净化器旁通系统
Leelool DPF Bypass System
前言
在不环保的冒烟过滤器中，旁通程序分担着开/闭旁通导压管可以把控废液流入的功效。不环保的冒烟过滤器普通运行时，旁通程序关停，汽车发因素废气排放实现过滤器正确办理脆皮出。不环保的冒烟过滤器对开机启动不环保的冒烟正确办理达到后，旁通程序重新使用 ，汽车发因素废气排放实现旁通排水管可以直接排放到。
In DPF, the bypass system plays a role in opening or closing the bypass pipeline to control the flow of exhaust gas.When DPF is working normally, the bypass system is closed and the engine exhaust is purified by the purifier before being discharged.After the DPF completes the exhaust treatment during startup, the bypass system opens and the engine exhaust is directly discharged through the bypass pipe.

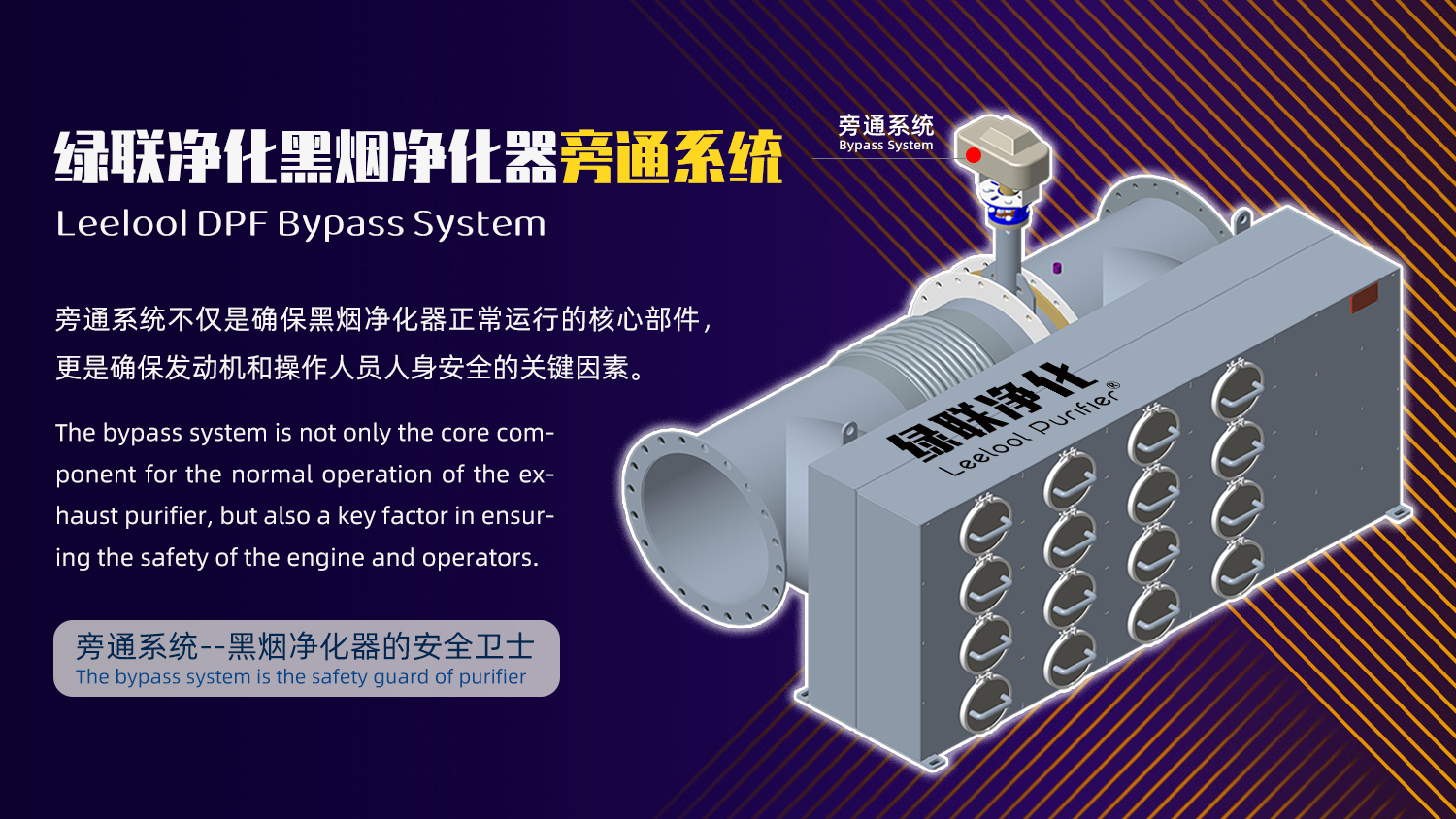

旁通控制系统不是保持冒烟净化机器很正常运作的基本元件，无论是保持启心理运作和控制的人员人身事故的重要性关键点。对此，在不环保的黑烟负离子净化器器的选取、装和维系中，整个的旁通软件系统的性能方面和可靠性设计性颇为己任要。
The bypass system is not only the core component for the normal operation of the exhaust purifier,but also a key factor in ensuring the safe operation of the engine and the personal safety of the operators.Therefore,in the selection, installation,and maintenance of exhaust purifiers,the performance and reliability of bypass system are particularly important.
旁通机购的构成的

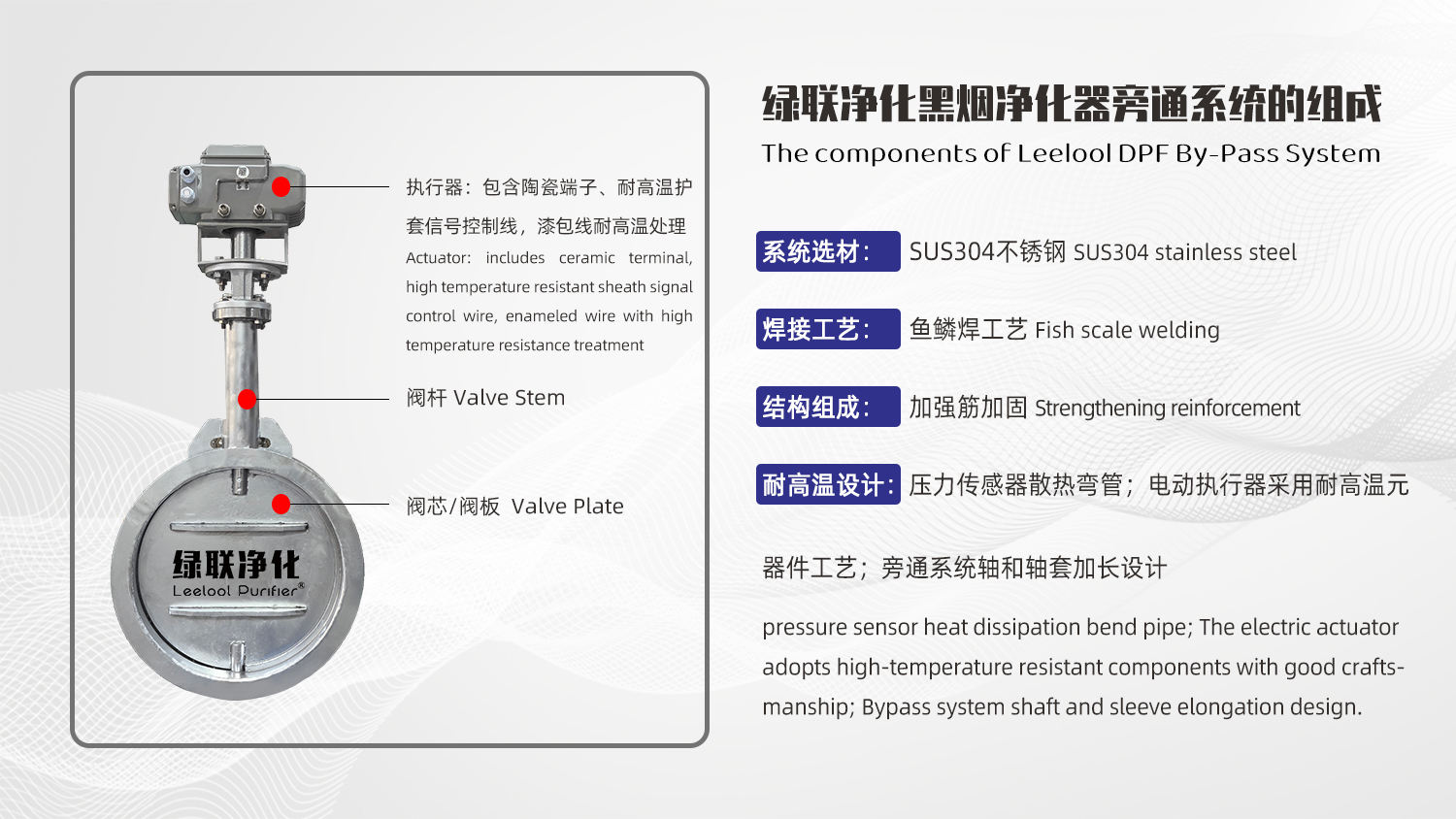

①旁通单位（阀体，阀芯/阀板，阀杆，执行器：陶瓷端子、耐高温护套信号控制线，漆包线耐高温处理）；②旁通管（等于净化器进/出口烟管直径）；③负荷无线信号数据采集及传输数据：压力传感器要安装散热管+散热翅片；④调控系統：电控箱、控制模块、继电器、指示灯、按钮及控制线路。作用是净化器工作状态显示，采集的信号处理，输出信号给旁通系统进行开/闭。
①Bypass mechanism (valve body, valve core and valve plate, valve stem, actuator: ceramic terminal, high temperature resistant sheath signal control wire, enameled wire with high temperature resistance treatment).②Bypass pipe (equal to the diameter of the inlet or outlet smoke pipes of the purifier).③Pressure signal acquisition and transmission: The pressure sensor should be equipped with a heat pipe and heat dissipation fins.④Control system: electrical control box, control module, relay, indicator light, button and control circuit. The function is to display the working status of the purifier, process the collected signals, and output signals to the bypass system for opening or closing.
旁通系统性能的影响因素
1. 平台的选用
Material selection
2. 控制系统的补焊生产工艺
Welding process
3. 平台的型式分解成
Structural composition
4. 耐较高温度电动式继续气动执行器
High temperature resistant electric actuator
5.抑制系统的：背压数据采样调节器器及数据输料配电线路
Control system: Back pressure signal acquisition sensor and signal transmission line
本期看点
世俱杯官网黑烟净化器旁通系统特点 PART.1 旁通系统装配过程 Bypass syetem assembly process 1.1密封盖连接Install cover 连结和固定不动旁通体统重点轴点，不断增加封闭性 Connect and fix bypass system to increase sealing performance 1.2支架上装有Install bracket 有保障旁通模式轴心点处于中轴线 Ensure bypass system axis point is located at the centerline 1.3旁通整体轴和轴套装设/连轴器装设 Install bypass system shaft and sleeve/Install coupling 1.4平垫装配Install gasket 平衡性支撑柱的也阻挡与执行力器间的转化率 Balance the base while isolating heat 1.5电动四轮连接器重新安装Install electric actuator PART.2 旁通系统与电控箱联动调试 Linkage debugging 2.1电控系统箱初始值产品参数调整Set initial parameters 协作电控系统箱，调理背压量值 Linkage control box and adjust back pressure value 2.2学习压力感知器自测Pressure sensor testing 自动改手动策略下測試系统性打开文档的职能（X6倍速） Test the function of system opening in manual mode 自功玩法下测试方法系統退出的功效（X6倍速） Test the function of system closing in manual mode 2.3模拟系统运动工作测试Simulate debugging 模拟训练过压工作内容，纪要报警装置时光（X5倍速） Simulate overpressure conditions and record alarm time PART.3 自动改手动开闭旁通软件的手段演绎 Manual opening and closing bypass system 3.1.自功使用 机系统运作最简单的方法操作说明 Demo of manual system opening operation method 选用内六角螺栓螺母插入图手松动杆地方，逆时针电动机，约150圈 Insert the hexagonal socket bolt into the manual joystick and rotate counterclockwise for about 150 turns 软件系统日趋点开（X3倍速）The system gradually opens 3.2.手動关了设计操作的技术操作说明 Demo of manual system closing operation method 施用内六角螺丝放手改变杆职位，从左到右扭动，约150圈 Insert the hexagonal socket bolt into the manual joystick and rotate it clockwise for about 150 turns 软件越来越关闭程序（X3倍速）The system gradually opens 世俱杯官网黑烟净化器旁通系统特点 Advantages of Leelool bypass-system 设备构思：SUS304（层厚≥10mm）SUS304（Thickness ≥ 10mm） 焊接加工加工：鱼鳞焊加工Fish scale welding 构造组合而成：做好筋固定Strengthening reinforcement 耐室温制作：压强感测器器蒸发器不锈钢弯头；电动三轮运行器选择耐室温元功率器件技艺；旁通制作轴和轴套加长版制作 High temperature resistant design: pressure sensor heat dissipation bend pipe; The electric actuator adopts high-temperature resistant components with good craftsmanship; Bypass system shaft and sleeve elongation design
